Portable Laser Hair Removal Machine 808 nm Diode Laser Fiber Coupled Laser Equipment

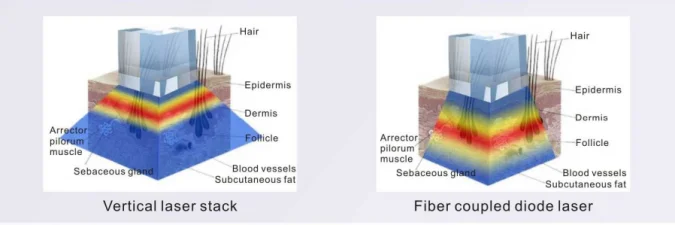

The light generated by multiple diode laser are coupled into a single-core multimode fiber by micro lens array, in order to deliver light to the target place. This innovative design assures uniform energy distribution, low damage rate, long lifespan and easy maintenance of the diode laser.
The FCD (Fiber Coupled Diode Laser for Depilation) laser locates inside the mainframe instead of handpiece. Therefore, laser energy is transferred by fiber to the target, which significantly increase the energy efficiency& handpiece life span. Lighter handpiece make it more convenient for doctors, while powerful cooling maximizes patients' comfort.
Different pulse widths are available according to different demands. Contact cooling system works at the same time. All above make the treatment process more comfortable, safe and convenient. The "sealing"-like treatment way is convenient for treatment operation.
1.Long lifetime, 20 million shots or 2 years guarantee
2.Super light handpiece
3.24 hours of continuous work,
4.Low requirements for water quality
5.Simple maintenance. No need to replace filter or water regularly
6. Working temperature can be 5-40 degree
| Details | IPL | OPT | Diode laser stack (Micro-Channel) | Diode laser stack(Macro-Channel) | Fiber couple diode laser |
| Wavelength | 640--1200nm | 610--1000nm | 808nm | 808nm | 808nm |
| Service life | 40,000 shots | 40,000 shots | 4,000,000shots | 4,000,000shots | 50,000,000shots |
| Weight of Handpiece | 800g | 800g | 1KG | 1KG | 550g |
| Treatment effectively | 60-80% | 60-80% | 100% | 100% | 100% |
| Continuous working time | shot frequency only up to1or 2HZ | output frequency can reach 10 Hz, but each energy is reduced. | Stand-by for 10 minutes when working 2 hours | Stand-by for 10 minutes when working 2 hours | Can work 24 hours a day |
| With Consumables | Yes | Yes | Without Consumablesbut need to be replaced frequently of the handpiece | Without Consumables butneed to be replaced frequently of the handpiece | NO |
| Laser service life | the light source is a flash lamp, it emits light is very limited. | the light source is a flash lamp, it emits light is very limited. | Too narrow water path to block and easy burned | Bigger water path without enough spacefor radiating and easy burned | Enough spce for water and radiating with long-time service lif |
Parameters:
| Laser Type | Fiber coulpled laser |
| Wavelength | 808nm~810nm |
| Voltage | 110V/220V 50-60Hz |
| Handpiece Power | 360W~640W |
| Spot Size | 15*15mm |
| Energy | 10~200mj/cm2 |
| Pulse Width | 1~400ms |
| Frequency | 1-15HZ |
